Minutes of the PS-SPS Users Meeting held on May 17th, 2023
Next user meeting:
Thursday, May 25th, 2023 10:30 CEST
Meeting room 874/1-011
(i.e., same location and time-slot as before the holiday!)
EURO-LABS Transnational Access call for applications (E.B. Holzer)
Detector related R&D test beam users can apply for user support in the form of a per-diem.
The per-diem is a financial support for payed accomodation (hotel, hostel etc.) and cost of living during the beam test for person travelling to CERN for the beam test. ⇒ requested per-diem less or equal the number of nights in the hotel.
No other financial support is possible.
Reminder: submission deadline May 18th 2023 ⇒
Please get in touch if you have questions or problems!
PS Machine Report (Alex Huschauer)
- 91% availability since last week, few issues
- 10 MHz cavity amplifiers needed exchange and access
- issue with BB LLRF controls that inhibited PSB-PS synchronisation
- extraction bumper issue yesterday night
- Beam status
- work to prepare doubleBatch TOF cycle ongoing (still some work needed for beam instrumentation in the line)
- EAST_T9 target symetry check based on BLMs in place
- AD cycle and transfer line optimisation ongoing
SPS Machine Report (Please Add Your Name Here)
SFTPRO
- Automatic optimization for 50Hz correction successfully running
- As requested, intensity step/adjustment on Monday (from 30 to 90 units on T2 and reduction to 60 units in T6)
- Adjustment of RF settings
- MD on empty bucket channeling and TT20 optics ongoing today
AWAKE
- This week is a semi-dedicated AWAKE week (possibility to run AWAKE in a dedicated manner for a certain time between LHC fill)
- It will be implemented on Friday morning for 1 hour tentatively at 11:00 AM. The exact time will be mentioned on page 1 as soon as possible.
News from the PS & SPS Physics Coordinator (E. B. Holzer)
Target intensities T2 / T4 / T6 = 90 (until July 5th) / 57 / 60
Wobbling change in week 22 for T4:
- H6 and H8 polarity change for higher energy beams in H8 for SND.
- Wobbling setting to keep beam quality and intensity for NA62 as requested.
Scheduled test of dedicated AWAKE running (no beam to North Area) on Friday for one hour starting at 11:00 (if no LHC filling during this time). To compensate for the loss of the North Area cycles, AWAKE will stop 2 hours earlier on that day (22:00 instead of 24:00).
Next scheduled Booster intervention / beam stop: 24th of May start at 7:30
MD planning for the comming weeks:
This week (week 20):
- PSB: short parallel MDs ongoing
- PS: short parallel MDs ongoing
- SPS:
- Monday/Tuesday: short parallel MDs in SPS
- Wednesday: dedicated MD :
- 08:00-13:00: empty bucket channelling with crystal shadowing in parallel → beam sent to P42 (no extraction from 08:00 to 08:30 for NA matrix change for physics users)
- 13:00-18:00: empty bucket channelling with LHC beam studies in parallel → beam sent to P42
Next weeks:
- Week 22 and 23:
- Crab cavity MDs → no beam sent to North Area
- Week 25:
- Planning MDs during cooldown requires RP authorization and therefore requires planning of the interventions to be known reasonably well in advance.
→ Current plan: COLDEX, crab cavities and Linac4 source tests
- Planning MDs during cooldown requires RP authorization and therefore requires planning of the interventions to be known reasonably well in advance.
Safety / Radiation Protection (Please Add Your Name Here)
n_TOF (Nikolas Patronis)
- EAR1: 181Ta(n,g) experiment is running smoothly. In data taking mode during the last ten days
- EAR2: Neutron capture setup auxiliary measurements will continue up to ~7th of June
- NEAR: No irradiation

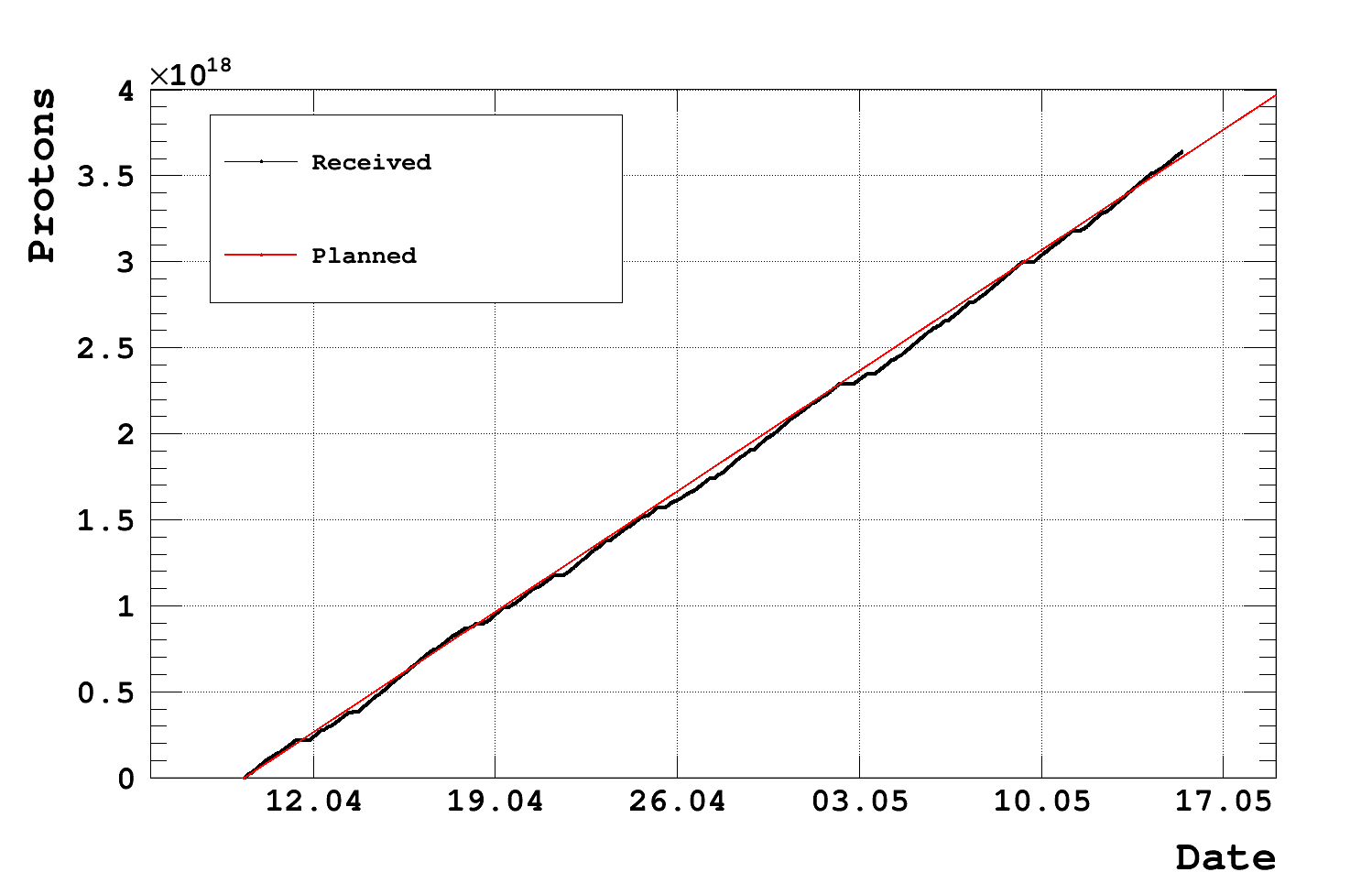

- PoT: 3.7e18 (According to our expectations. Many thanks to the PS teams!)
- Next scheduled beam stop (NEAR intervention): 24th May Wednesday 09:00 - 14:00
file:///tmp/pid-2766/Protons-1.png
East Area Beam Status (D. Banerjee)
T09: No user last week. Successful online monitoring test for the East Targets. CALICE run started from yesterday.
T10: High pressure XCET is once again fully operational.
T11: issue with access door fixed last Thursday that caused patrols to have to be repeated.
East Area Users Tour de Table
T8: IRRAD / CHARM (F. Ravotti & S. Fiore)

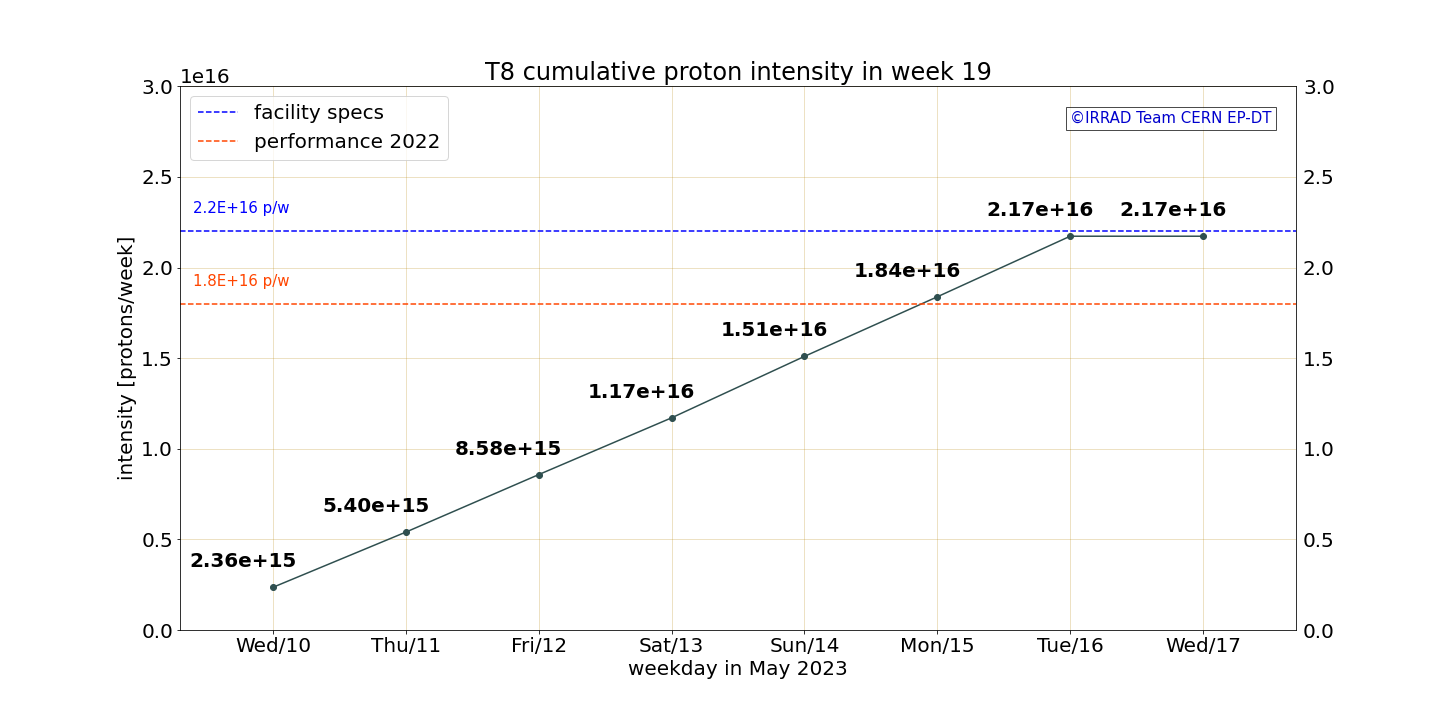

Very good week with no issues. Access is ongoing for replacing samples and experiments in both CHARM and IRRAD. Another very good with with very stable and intense beam, approcching very close the weekly target intensity (see below). Next access on Wednesday next week.
